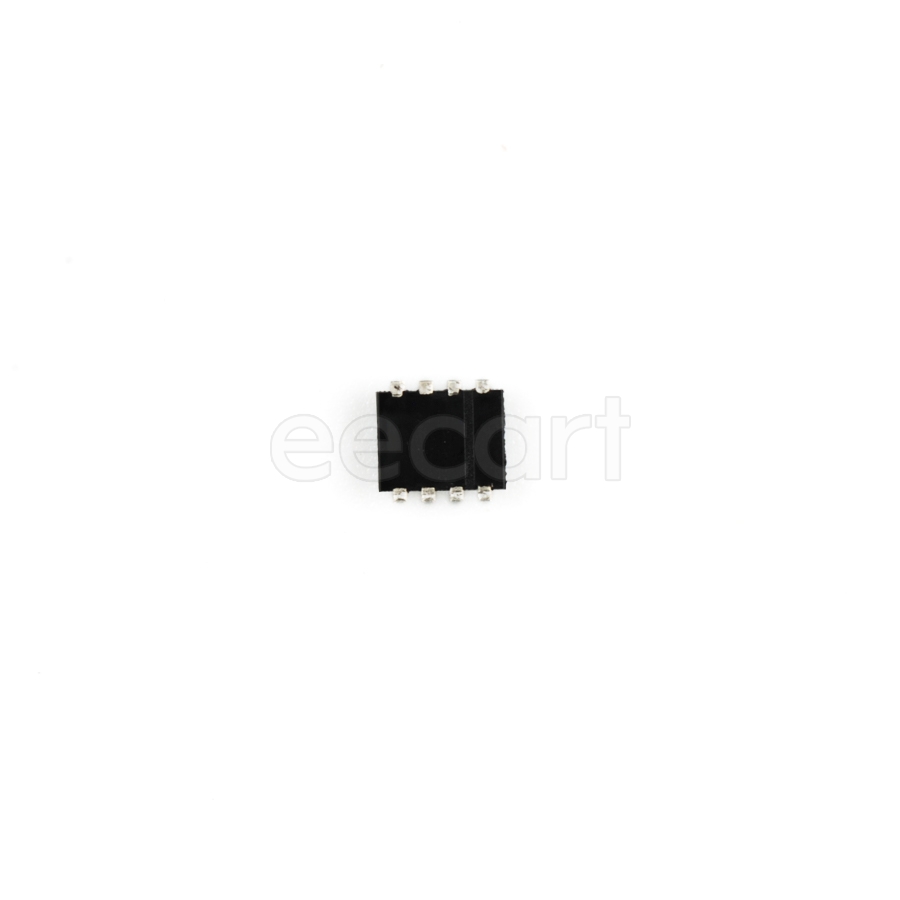

ECH8693R-TL-W
Manufacturer:
On Semiconductor
Mfr.Part #:
ECH8693R-TL-W
Datasheet:
Description:
MOSFETs SOT-28FL/ECH8 SMD/SMT N-Channel number of channels:2 1.4 W 24 V Continuous Drain Current (ID):14 A 13 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 1.4 W |
| Power Dissipation | 1.4 W |
| Number of Channels | 2 |
| Continuous Drain Current (ID) | 14 A |
| Rds On Max | 7 mΩ |
| Drain to Source Voltage (Vdss) | 24 V |
| Turn-On Delay Time | 545 ns |
| Turn-Off Delay Time | 18.65 µs |
| Rise Time | 525 ns |
| Gate Charge | 13 nC |
| Drain to Source Resistance | 7 mΩ |
| Gate to Source Voltage (Vgs) | 12.5 V |
| Drain to Source Breakdown Voltage (Vds) | 24 V |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Gate to Source Threshold Voltage | 1.3 V |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 9041
Distributors
pcbx
pcbxUnit Price$0.64462
Ext.Price$0.64462
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.64462 | $0.64462 |
| 10 | $0.39327 | $3.93270 |
| 25 | $0.34367 | $8.59175 |
| 50 | $0.30033 | $15.01650 |
| 100 | $0.26246 | $26.24600 |
| 300 | $0.24840 | $74.52000 |
| 500 | $0.23510 | $117.55000 |
| 1000 | $0.21373 | $213.73000 |
| 3000 | $0.16244 | $487.32000 |
| 5000 | $0.14876 | $743.80000 |
